产品详情

TBI滚珠丝杆/SFYR2550A2D

产品规格：SFYR2550A2D产品类别：SFY高导程系列

台湾TBI滚珠丝杆,TBI研磨丝杆，TBI扎制丝杆，TBI滚珠螺杆，TBI线性导轨，TBI滚珠花键、TBI旋转滚珠花键，台湾TBI东莞代理商---------东莞市君誉传动科技有限公司
螺母型号：SFYR2550A2D
型号示列：SFYR2550A2D-DFC7-1000-PO
精度等级：常用为C7扎制丝杆、C5精密研磨丝杆
生产产地：中国台湾
产品优点：
滚珠螺杆－端盖式循环高速系列特色
1. 端盖式循环设计，高速静音，高Dm-N值。
2. 特殊循环设计，即使高导程也能保有高顺畅性。
3. 专利防尘设计，防尘效果佳。
4. 规格种类其全，多种导程尺寸皆有生产。
5. 无间隙，高刚性。
SFY系列为高速强化防尘型滚珠螺杆，具有高速性、高负载及高刚性等特性，具有高顺畅度，且SFY的特殊设计使其防尘效果大幅的提升，循环结构的强化使其更适合在高速的环境下运作。设计提升其稳定性、负载以及使用寿命。
TBI轧制级C7级大量现货库存，欢迎新老客户朋友来电咨询及订购，3天内交货！研磨级丝杆货期较长具体交货期限及报价咨询。

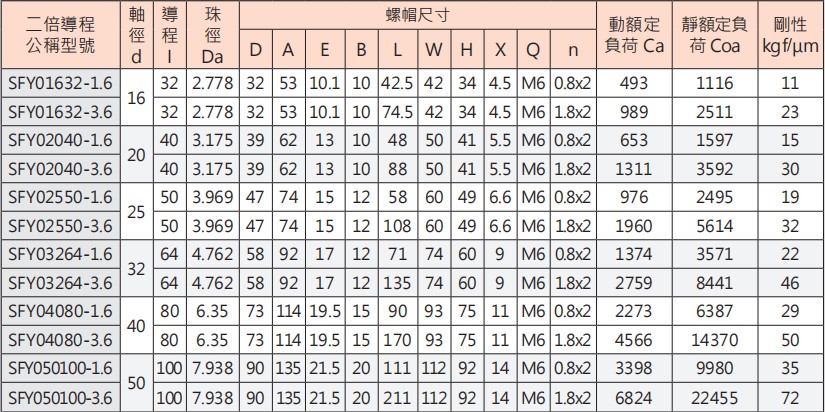

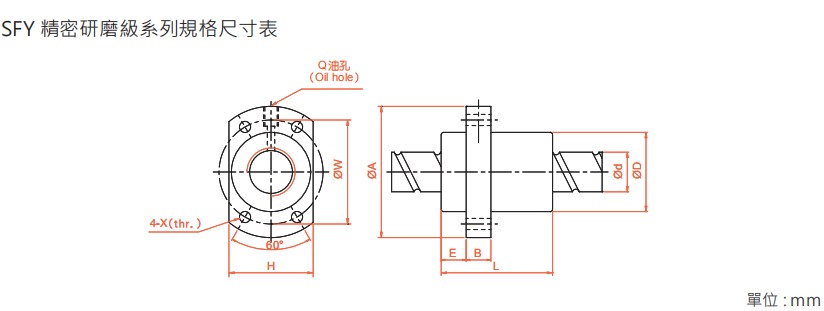

产品参数：

产品实物：

SFY系列型号：
SFYR1616 SFYR2020 SFYR2525 SFYR3232 SFYR4040 SFYR5050
本公司大量低价批发供应台湾全球滚珠TBI滚珠丝杆，品质保障，价格有优势！
可配台湾制原装螺母或国产螺母，价格实惠，备有现货，可以来图纸加工，欢迎来电咨询！
滚珠丝杆由于运动效率高、发热小、所以可实现高速进给(运动)。
滚珠丝杆精度公差:C10, C7, C5, C3, C2, C1----数字越小，精度越高。

适用范围
适用于高速化机械、精密工具机、CNC机械、产业机械、电子机械…医疗机械等。
我公司提供丝杆支撑座、配套设施、价格优惠。
丝杆预压：PO P1 P2 P3 P4常用预压为PO P1 P2.
TBI滚珠丝杆螺母现货供应，长期备货，现货供应。第一时间把您所需TBI产品及时送到，同时为客户提供滚珠丝杆在线技术服务,TBI资料参考，以便选型。
君誉传动科技有限公司、坚持质量第一，信誉至上，服务热情，用户满意为目的，我们将会是您优质的供应商，热情欢迎广大客户光临参观指导！

龙先生：18826810181
